Pololu 3pi Robot

Model No: ROB-00046

~~TK. 8995.19~~

TK. 5971.01

Quantity:

1 Ratings / 1 Reviews

Save to Wishlist Out of Stock

Category: Robotic Kits

Supplier: Pololu, USA

summary
Specification

Enjoy 4% Discount on total bill on order worth BDT 10000 or more. Enjoy 2% Discount on total bill on order worth BDT 5000 or more.

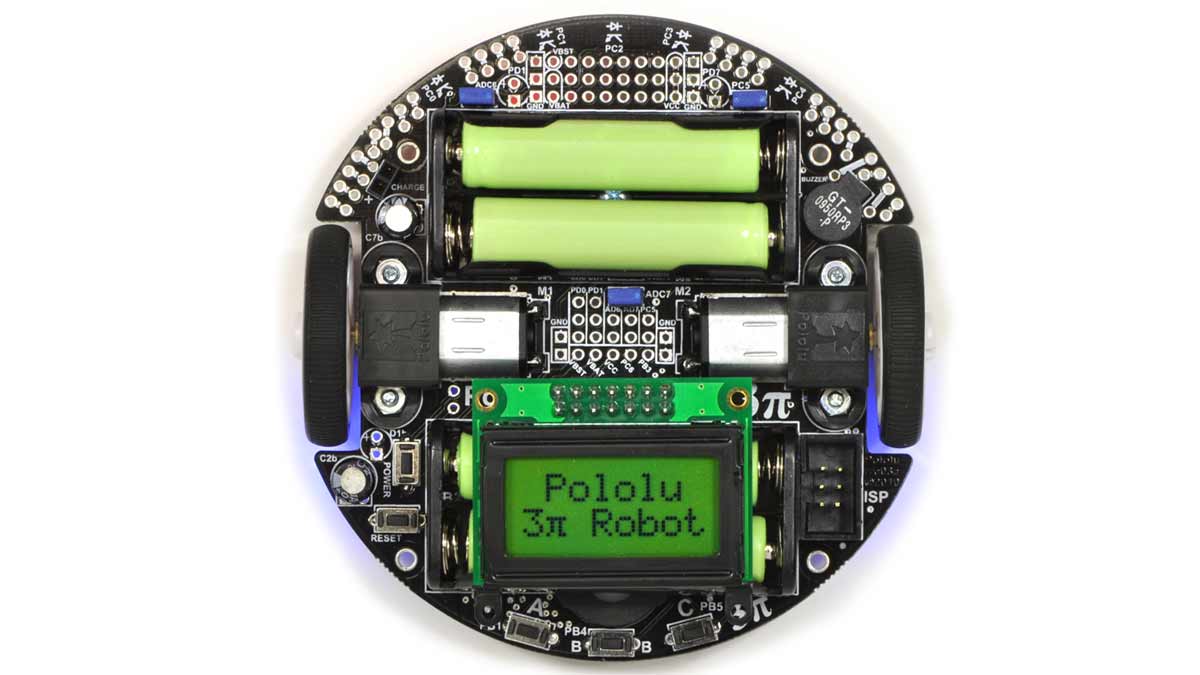

The Pololu 3pi robot is a complete, high-performance Multipurpose robot platform. It features two micro metal gearmotors, five reflectance sensors, an 8×2 character LCD, a buzzer, and three user pushbuttons, all connected to a C-programmable ATmega328 microcontroller.

Capable of speeds exceeding 3 feet per second, 3pi is a great first robot for ambitious beginners and a perfect second robot for those looking to move up from non-programmable or slower beginner robots.

Overview

The 3pi robot is designed to excel in line-following and maze-solving competitions. It has a small size (9.5 cm/3.7" diameter, 83 g/2.9 oz without batteries) and takes just four AAA cells (not included), while a unique power system runs the motors at a constant 9.25 V independent of the battery charge level. The regulated voltage allows the 3pi to reach speeds up to 100 cm/second while making precise turns and spins that don’t vary with the battery voltage.

The 3pi robot makes a great platform for people with C programming experience to learn robotics, and it is a fun environment for ambitious beginners to learn C programming. At its heart is an Atmel ATmega328P microcontroller running at 20 MHz and featuring 32 KB of flash program memory, 2 KB RAM, and 1 KB of persistent EEPROM memory. The popular, free GNU C/C++ compiler works perfectly with the 3pi, Atmel Studio provides a comfortable development environment, and an extensive set of libraries provided by Pololu makes it a breeze to interface with all of the integrated hardware. The 3pi is also compatible with the popular Arduino development platform. We provide a number of sample programs to show how to use the various 3pi components, as well as how to perform more complex behaviors such as line following and maze solving.

To know more about this product,please click this link.

Processor:	ATmega168/328P
Motor driver:	TB6612FNG
Motor channels:	2
User I/O lines:	2
Minimum operating voltage:	3 V
Maximum operating voltage:	7 V
Maximum PWM frequency:	80 kHz
Reverse voltage protection?:	Y
External programmer required?:	Y
