Category: Breadboard
Additional Information

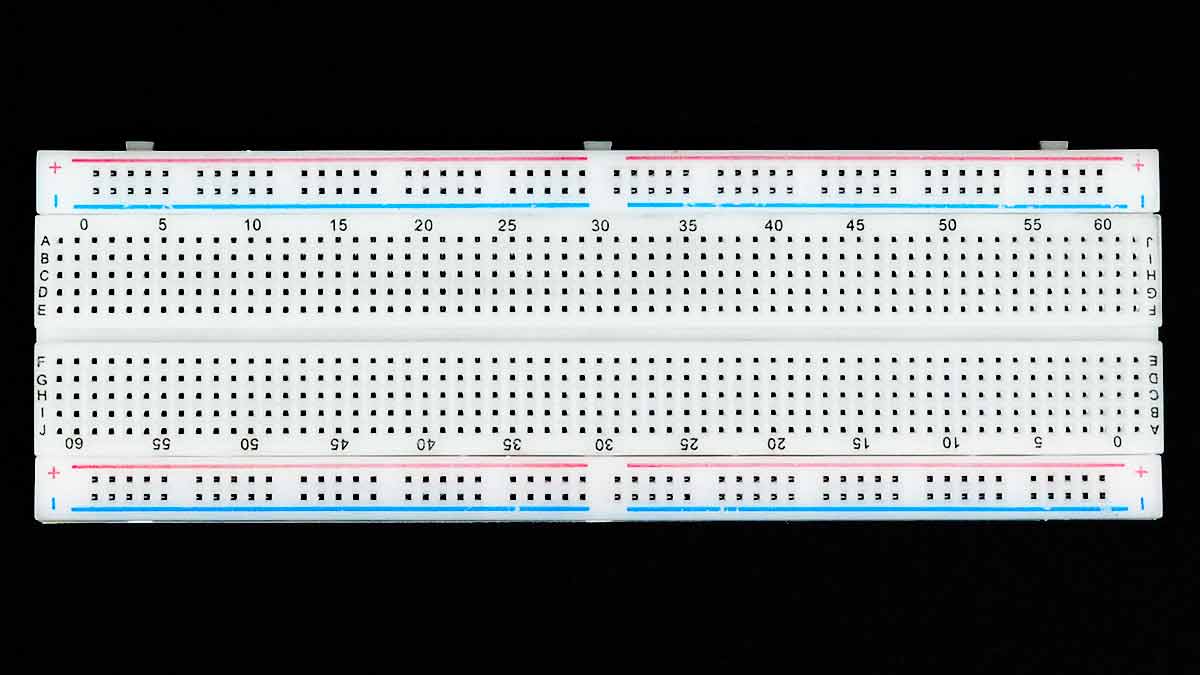

The 830 Point Breadboard is a reliable and practical tool for building, testing, and modifying electronic circuits without soldering. It is widely used with Arduino, microcontrollers, sensors, and development boards, making it ideal for students, engineers, makers, and electronics professionals.
This breadboard allows you to quickly prototype circuit designs, test components, and create working models before moving to permanent PCB designs. Its clear layout, strong internal contacts, and large connection area make it suitable for both simple and complex projects.
With an integrated power rail and a 630-point central terminal area, this breadboard supports organized wiring and easy circuit expansion. The removable adhesive backing and metal base plate allow it to be securely mounted on project panels, enclosures, or lab benches.
| Parameter | Specification |
|---|---|
| Total Tie Points | 830 |
| Terminal Strip Area | 630 points |
| Power Rails | 200 points (4 bus bars) |
| Wire Size Supported | 21 to 26 AWG |
| Wire Diameter | 0.4 mm – 0.7 mm |
| Body Material | White ABS plastic |
| Mounting | Removable adhesive tape |
| Dimensions | 6.5 × 2.2 × 0.3 inches (165 × 56 × 8.5 mm) |
The breadboard has strips of metal underneath the board and connect the holes on the top of the board. The metal strips are laid out as shown below. Note that the top and bottom rows of holes are connected horizontally and split in the middle while the remaining holes are connected vertically.
Note how all holes in the selected row are connected together, so the holes in the selected column. The set of connected holes can be called a node:
To interconnect the selected row (node A) and column (node B) a cable going from any hole in the row to any hole in the column is needed:
Now the selected column (node B) and row (node A) are interconnected:
Why Choose This Breadboard
This 830-point solderless breadboard is designed for accuracy, durability, and ease of use. The phosphor bronze contacts with nickel plating ensure stable electrical connections and long service life. The printed legends help users identify rows and columns quickly, reducing wiring errors.
Its strong metal backing and adhesive layer make it perfect for fixed installations, robotics projects, or electronics training kits. You can also connect multiple breadboards together to create a larger working area for advanced projects.
Breadboard Comparison: 830-Point vs 400-Point
| Feature | 830-Point Breadboard | 400-Point Breadboard |
|---|---|---|
| Total Tie Points | 830 | 400 |
| Main Terminal Area | 630 tie points | ~300 tie points |
| Power Rail Points | 200 (4 bus bars) | ~100 (2 bus bars) |
| Expandable | Yes — connect multiple boards | Yes — smaller expansion area |
| Use With Arduino / Microcontrollers | Highly suitable | Suitable for compact projects |
| Best For | Professional testing, education, prototyping | Student projects, basic circuits |
Applications
TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.
Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.
Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110 from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox
Ratings and 3 Reviews
Reviews (3)
Verified Purchase
Verified Purchase
Very Good quality.
Verified Purchase
Ati Delevary dite kto somoy lagbe??
Verified Purchase
Verified Purchase
That's good enough. But don't you(techshop) have better quality.
By saimkhan123 on 03 Oct 2020
We have never received any complaint from our customers regarding usage of this product. That's why we didn't feel the need to stock something better (and expensive). If you have something better in mind, feel free to share with us.
By TechShopBD on 04 Oct 2020
Thanks for giving me this opportunity. Techshopbd is Really good and very trusted. I just want to make another order. Thanks(Techshop)
By TechShopBD on 06 Oct 2020
Should mention whether the breadboard is split rail or not in the description or specification.
By Adiyat on 08 Sep 2020
It's split rail. This can be understood by checking whether or not there's a gap in the red / blue line. And the previous image was wrong. Thanks for helping us fix that.
By TechShopBD on 10 Sep 2020
Ekhane 1-9 ta breadboard options ache mane ami ki 9 ta pabo?
By Nisa182 on 01 May 2019
না। 1-9 মানে হল ১ পিস নেওয়া হোক আর ৯ পিস নেওয়া হোক, প্রতি পিসের দাম একই পড়বে। ৮৫ টাকা।
By TechShopBD on 02 May 2019
This one's quality is not good enough.
By alamin07 on 12 Jun 2016
how much point does have this breadboard??
By kochiBHUYAN on 29 Feb 2016
830.
By TechShopBD on 01 Mar 2016
