Multifunctional Component Tester LCR P1 FNIRSI

Model No: MIS-00792

TK. 5500.04

Availability: In stock

Quantity:

Category: Measurement

Supplier: Made in China

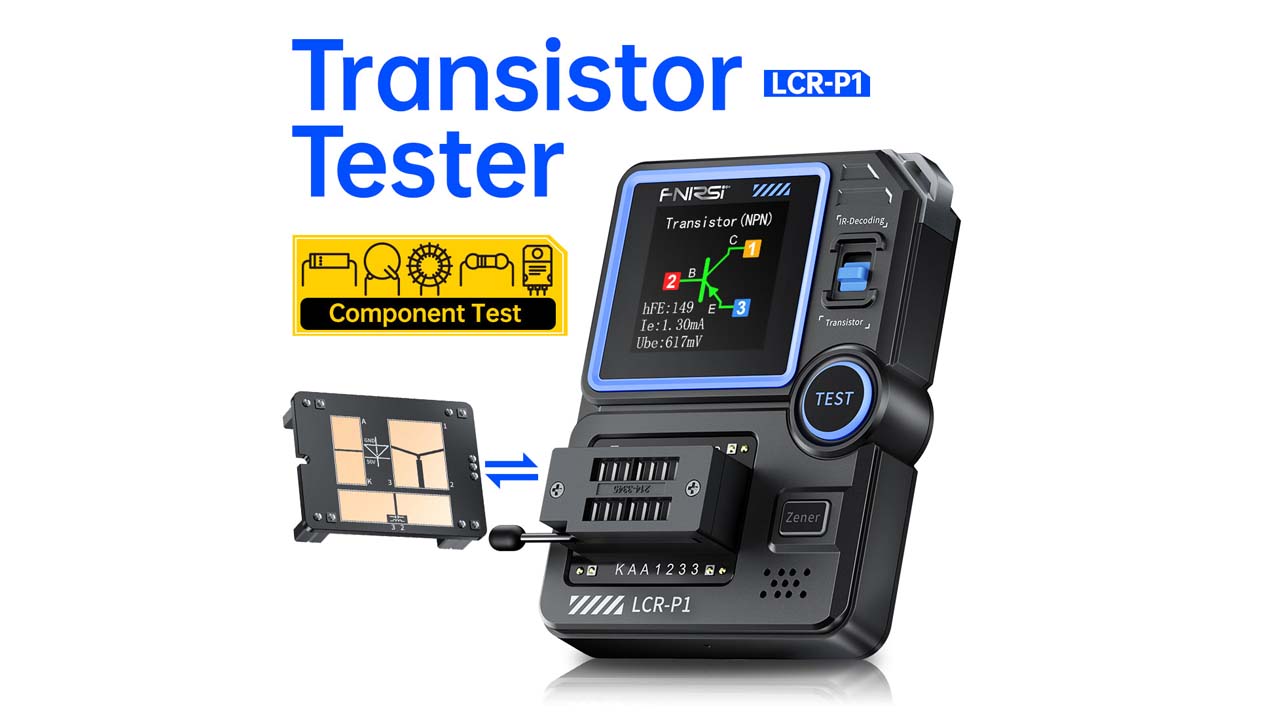

The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs). Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.

Features:
- Intelligent anti-burning design: uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage.
- Data export: supports connecting to a computer to export data, easily transferring the collected measurement data to facilitate further in-depth analysis on the computer.
- Alternate measuring modes: innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency.
- Intelligent recognition components: simply plug & clamp, one-button quick identification of component parameters, saving time and effort.
- Zener diode independent measurement: independent measurement channel for measure diodes, measuring 0.01-32V with pre-measurement power supply for precise results.

Specification:

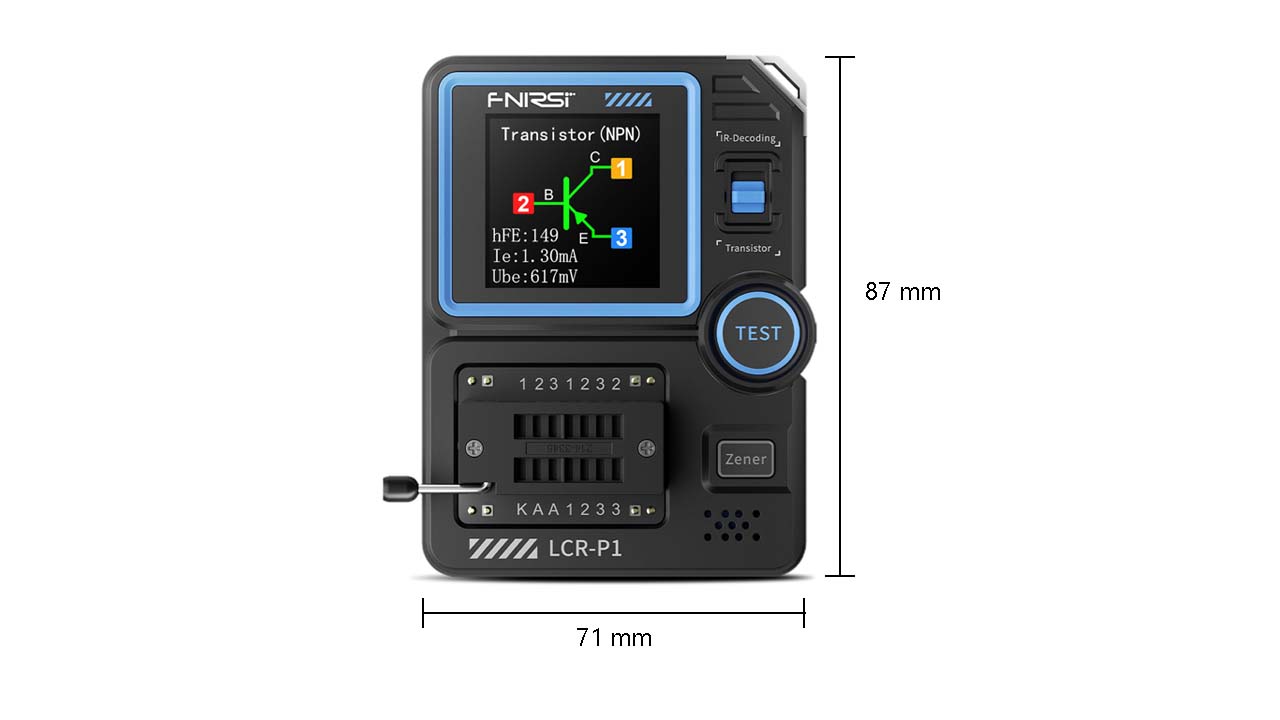

- Product model: LCR-P1
- Screen display: 1.44 inch color screen
- Charging specification: USB Type-C, 5V/1A
- Power supply: 300mAh lithium battery
- Operating temperature: 0 ~ 40℃
- Resistance: 0.01Ω - 50MΩ
- Capacitance: 25pF ~ 100mF
- Inductance: 10uH - 1000uH
- Transistor: 10 < β < 600
- Diode: forward voltage drop < 4.5V
- Voltage regulator diode: 0.01 - 4.5V, 0.01 - 32V
- Field-effect transistor: JFET, IGBT, MOSFET
- One-way/bidirectional thyristor: turn-on voltage < 5V, gate trigger current < 6mA
- Battery: 0.1 - 4.5V
- IR remote decoding: NEC protocol infrared code
- Battery capacity: 300mAh lithium battery
- Anti-burn protection: yes
- Data export: supported
- Firmware upgrade: supported

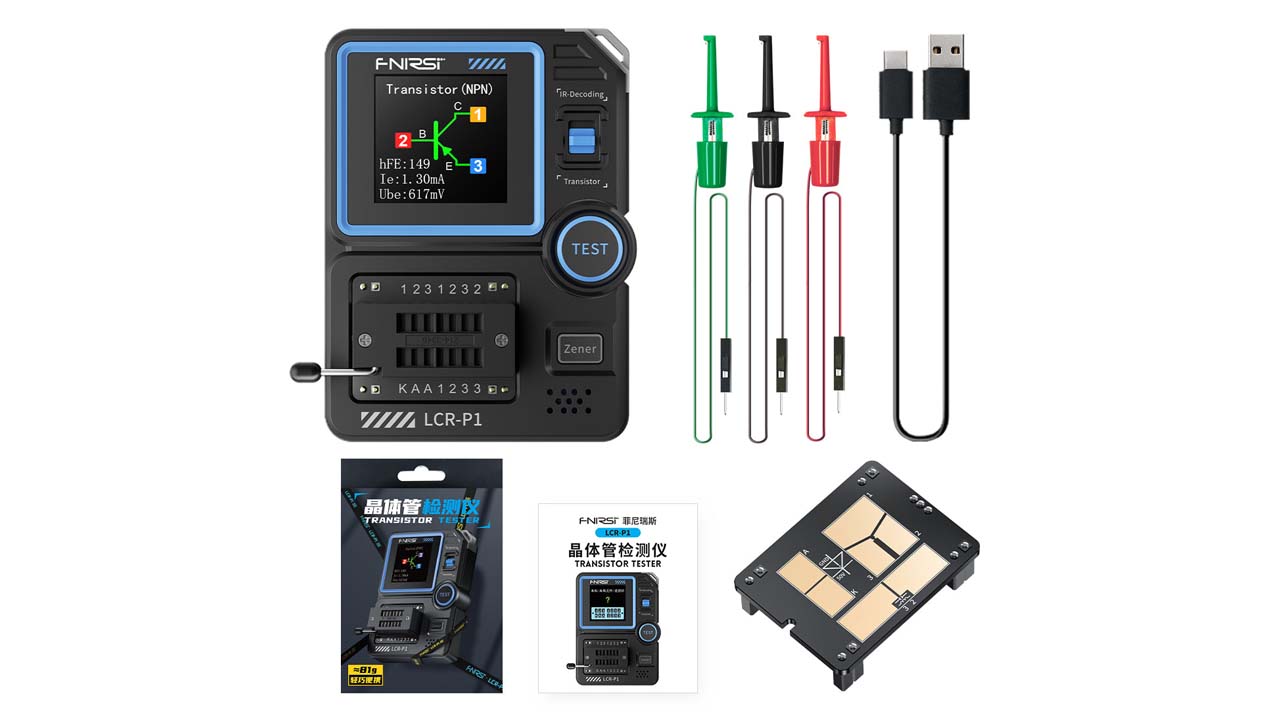

Package Included:
- 1 x Tester
- 1 x Replaceable Test Board
- 1 x USB Data Cable
- 1 x User Manual
- 1 x Packaging Box
- 3 x Testing Hook
