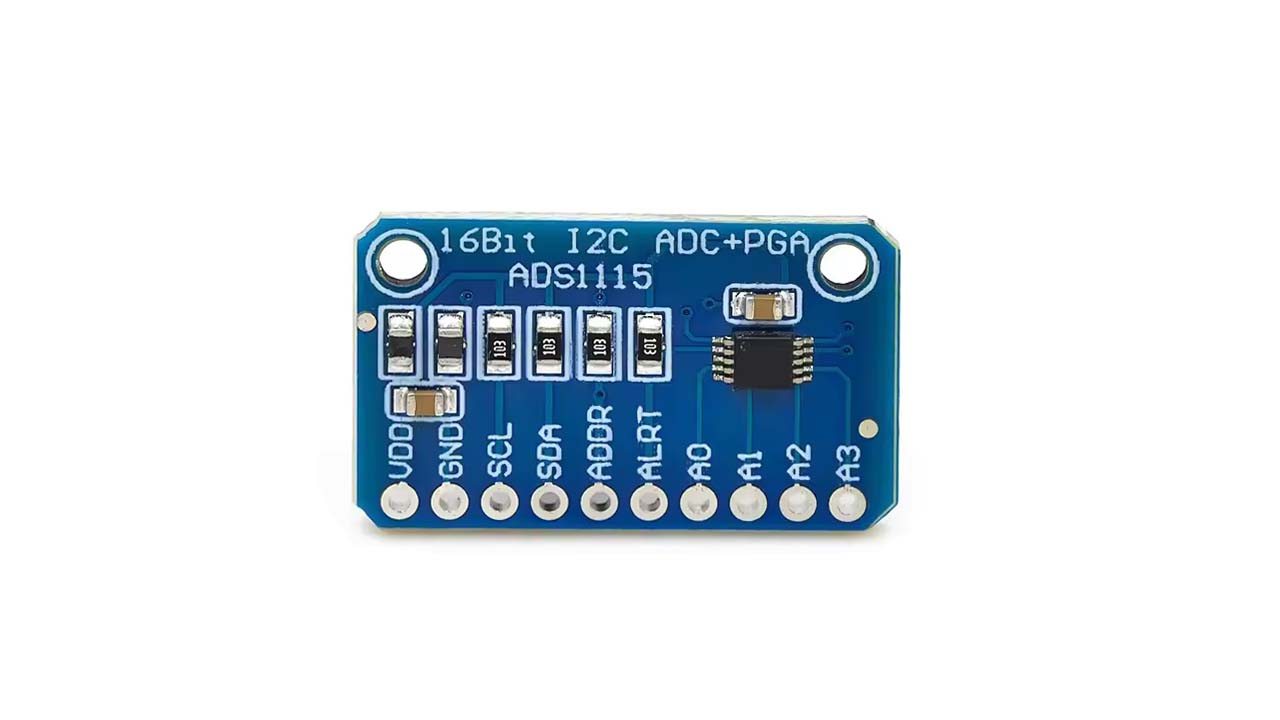

ADS1115 16-bit ADC Development Module

ADS1115 16-bit ADC Development Module

The ADS1115 ADC Module is a high-precision 16-bit analog-to-digital converter, ideal for microcontrollers that lack a built-in ADC or require higher resolution. It offers 4 single-ended or 2 differential input channels over I2C, includes a programmable gain amplifier up to 16x, and supports a wide operating voltage from 2V to 5.5V. Its compact breakout design ensures stable performance with clean analog and ground lines maintained by onboard ferrites.

Capable of up to 860 samples per second, the ADS1115 is perfect for applications needing fast and accurate analog readings. It supports multiple I2C addresses (0x48–0x4B), allowing up to four modules on a single bus, and works seamlessly with Arduino, Raspberry Pi, ESP32, and other development platforms.

Key Features

• 16-bit high-precision ADC for accurate analog readings.
• 4 single-ended or 2 differential input channels.
• Built-in Programmable Gain Amplifier (up to 16x).
• Wide operating voltage: 2V to 5.5V.
• Low power consumption with auto shut-down mode.
• I2C communication with selectable addresses (0x48–0x4B).

Technical Specifications

Applications

• High-precision temperature sensing
• Battery level monitoring
• Industrial automation and process control
• Robotics and embedded system projects
• Portable, compact sensor systems

Uses for the 16-Bit 4-Channel ADC ADS1115 with Programmable Gain Amplifier

• This converter will of course prove useful to all those not possessing a microcontroller with an analogue-to-digital converter. It can also be added to a pre-existing CAN for taking more precise measurements of small and large signals.
• Such a device can be used to create a temperature measuring tool, an automation or process control system, or even a battery level indicator. Its tiny size means it can be used in extremely compact portable projects.

Packaging Details

• 1 X ADS1115 16-bit ADC Development Module

Why Choose This ADS1115 16-bit ADC Development Module?

The ADS1115 ADC Module offers 16-bit high-precision conversion, supports 4 single-ended or 2 differential inputs, features a built-in gain amplifier, operates on low power, ensures wide microcontroller compatibility, and allows easy expansion with multiple I2C addresses.
